Máy đo kính tự động

Máy thử kính TW-1515

06/01/2011 20:53

Wenzhou Dongwu-TQ

Ophthalmic Unit

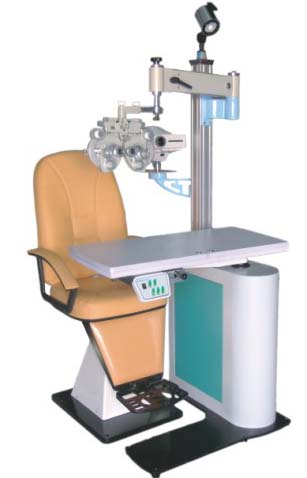

TW-1515 Ophthalmic Unit
Features:
•Import Danish motors; elevation is steady and with less noise.
•Chair is elevated electronically, able to bear the heavy weight.
•Arm for phoropter could be adjusted at any angle from right to left or up and down.
•The table could be rotated for 90 degree.
•The table could slide and hold two instruments.
•Different color of table and chair could be chosen.
•There are some spare jacks for 3V, 6V, 9V, 12V and 24V.

Specifications:
•Table size………………90×42cm
•The height of table……………89cm
•Elevation range for the phoropter arm: 120-180cm
•Rotating angle of swing arm……120º
•Rotating angle of table…………90º
•Sliding range for table…………41cm
•Elevation range for chair……45-60cm
•Lighting luminaire………24V/35W
•Power………………150W
•Input voltage: 110V/60HZ or 220V/50HZ
•Dimension(L×W×H): 170×130×200cm
•Weight………………230kgs
•Max Loading………………30kgs

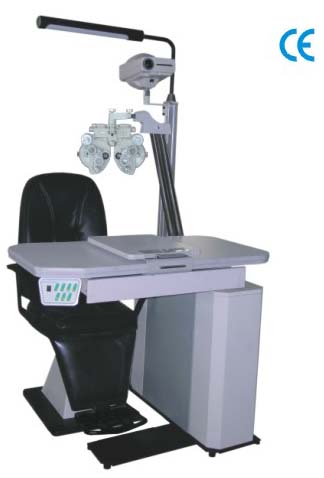

TW-1516 Ophthalmic Unit
Features:
•Import Danish motors; elevation is steady and with less noise.
•Chair is elevated electronically, able to bear the heavy weight.
•The arm for phoropter is swung electronically.
•The table could be rotated for 90 degree.
•The table could hold one instrument, easy to conduct.
•Different color of table and chair could be chosen.

Specifications:
•Table size………………105×54cm
•Drawer size(L×W×H): 62.5×35×6.5cm
•The height of table…………89.5cm
•Rotating angle of swing arm……±22.5º
•Rotating angle of table…………90º
•Elevation range for chair……45-60cm
•Lighting luminaire……220V/110V/25W
•Power………………160W
•Input voltage: 110V/60HZ or 220V/50HZ
•Dimension(L×W×H): 170×110×161cm
•Size of the sliding board: 42×32×2cm
•Sliding range for the board: 46cm
•Weight……………………230kgs
•Max Loading………………50kgs

TW-1510 Ophthalmic Unit
Used of ophthalmic diagnosis and optometry as a general ophthalmic unit.

Features:
1. Hydraulic pressure up and down movement with lower noise;
2. Able to be equipped with arm, projector and so on;
3. Economical background illumination, comfortable;
4. Reasonable construction and clipper-built shape;

Specifications:
1. Arm tilting angle…………±30º;
2. Table rotate angle……………90º;
3. Table slip scope………±150mm;
4. Chair rotate………………±60º;
5. Chair height…………500-700mm;
6. Weight………………200Kgs;
7. Power: 120W, 220V, 50Hz/110V, 60Hz;
8. Illumination bulb……………15W;
