Trang chủ » Máy đo kính tự động

Máy đo kính tự động

Máy thử kính TW-1001

06/01/2011 21:15

Máy thử kính TW-1001

  Wenzhou Dongw-TQ

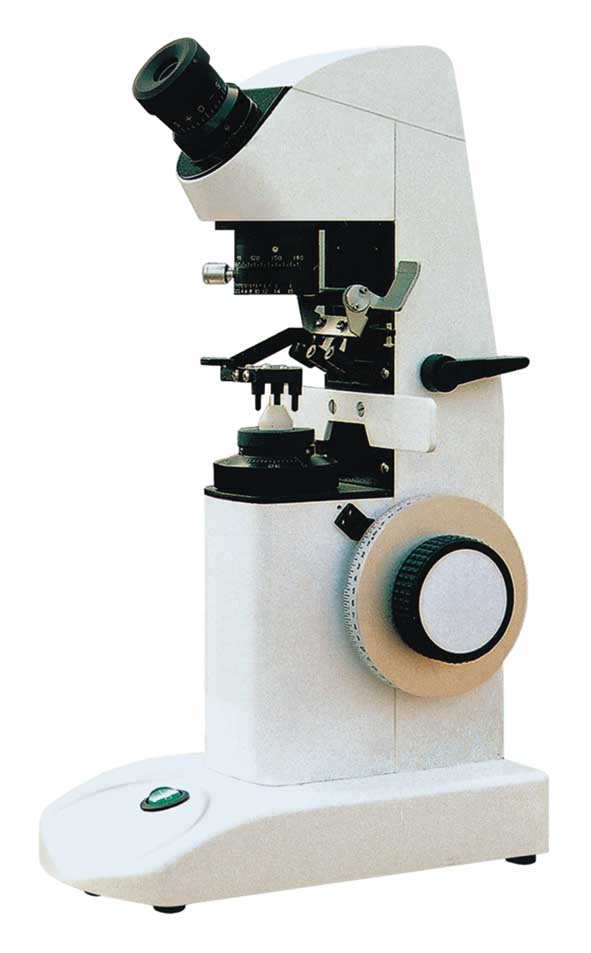

 Lensmeter: TW-1001 (Look In Inner Type)

specifications︰1.Ranges of measurement: 0 to±25D Minimum: 0.125D graduation up to ±5D 0.25D graduations over ±5D to ±25D

2.Cylinder Axis Range: 0 ~180°step 1°

3.Prismatic Power Range:Prism diopter of Pattern A: at 1△ interval in the range of 0~5△Prism diopter of Pattern B: at 1△ interval in the range of 0~20△

4. Prism base angle :at 50 intervals in the range of 0 ~180 degree

5.Eyepiece Adjustment: ±5D

6.Measurand Lens Diameter: φ16 ~φ80mm

7.Dimensions: 275mm(h)×130mm(w)×455mm(d)

8.Weight: 5.6kg

9.Lamp: 220V15W 110V15W

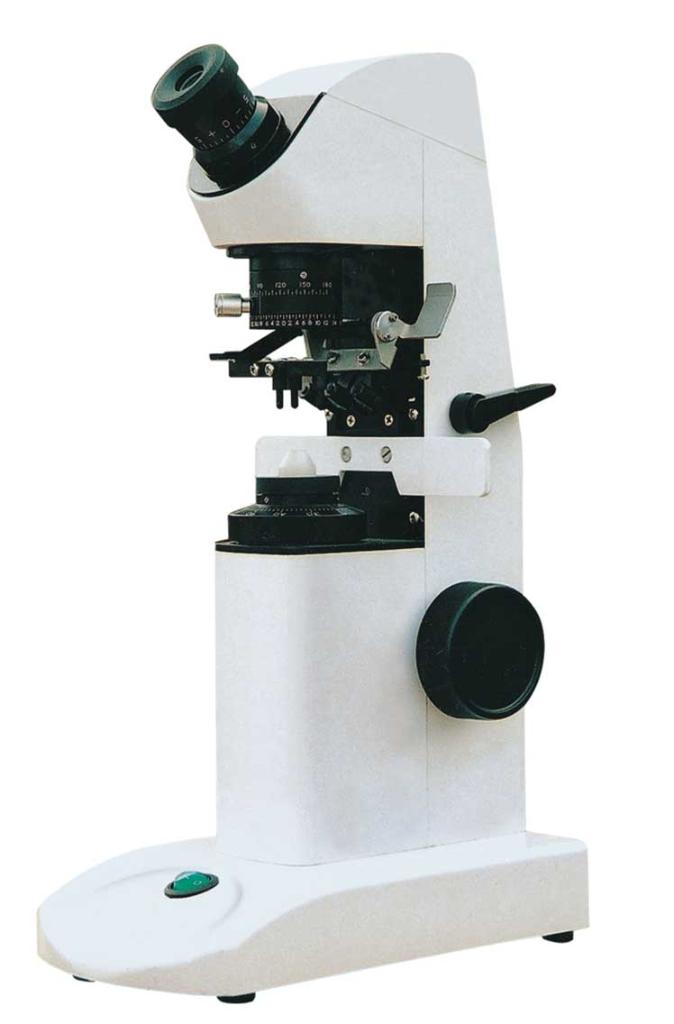

Lensmeter: TW-1006 (Look In Inner Type)

Lensmeter: TW-1006 (Look In Inner Type)
specifications︰1.Ranges of measurement: 0 to±25D Minimum: 0.125D graduation up to ±5D 0.25D graduations over ±5D to ±25D

2.Cylinder Axis Range: 0 ~180°step 1°

3.Prismatic Power Range:Prism diopter of Pattern A: at 1△ interval in the range of 0~5△Prism diopter of Pattern B: at 1△ interval in the range of 0~20△

4. Prism base angle :at 50 intervals in the range of 0 ~180 degree

5.Eyepiece Adjustment: ±5D

6.Measurand Lens Diameter: φ16 ~φ80mm

7.Dimensions: 275mm(h)×130mm(w)×455mm(d)

8.Weight: 4.3kg

9.Lamp: 220V15W 110V15W

Lensmeter: TW-1002

Lensmeter: TW-1002
specifications︰It is suitable for spectacles factories, spectacles retail departments, department of ophthealmology in hospital andoptical element factories to measure sphere. Cylinder power, Cylinder axis, prismatic power of spectacles slices and lenses, and contact lenses power.

●Specifications
1.Ranges of measurement: 0 to ±25D Minimum: 0.125D graduation up to ±5D 0.25D graduations over ±5D to±25D

2.Cylinder Axis Range: 0 ~180°step 1°

3.Prismatic Power Range:Prism diopter of Pattern A: at 1△ interval in the range of 0~5△Prism diopter of Pattern B: at 1△ interval in the range of 0~20△

4. Prism base angle :at 50 intervals in the range of 0 ~180 degree

5.Eyepiece Adjustment: ±5D

6.Measurand Lens Diameter: φ16 ~φ80mm

7.Dimensions: 275mm(high)×130mm(wids)×455mm(deep)

8.Weight: 5.6kg

9.Lamp: 220V15W 110V15W

Lensmeter: TW-1007

Lensmeter: TW-1007
specifications︰1.Ranges of measurement: 0 to±25D Minimum: 0.125D graduation up to ±5D 0.25D graduations over ±5D to ±25D

2.Cylinder Axis Range: 0 ~180°step 1°

3.Prismatic Power Range:Prism diopter of Pattern A: at 1△ interval in the range of 0~5△Prism diopter of Pattern B: at 1△ interval in the range of 0~20△

4. Prism base angle :at 50 intervals in the range of 0 ~180 degree

5.Eyepiece Adjustment: ±5D

6.Measurand Lens Diameter: φ16 ~φ80mm

7.Dimensions: 275mm(h)×130mm(w)×455mm(d)

8.Weight: 4.3kg

9.Lamp: 220V15W 110V15W


Lensmeter: TW-1005 (Portable)

Lensmeter: TW-1005 (Portable)

specifications︰Vertex Power Range:
+15 diopter to -15 diopter;
Vertex Power Step:
0-(±)10D for 0.125D
(±)10D-(±)15D for 0.25D;

Prismatic Power Range:
4 prism diopter;
Prismatic Power Step:1diopter;

Cylindrical Axis Range:
0 to180 degrees;
Cylindrical Axis Step:5 degree;

Lenses Accommodated:
Diameter 20mm to 80mm;

Eyepiece Focusing:-5D to +5D;

Bulb: 6V/3W;
