Máy đo kính tự động

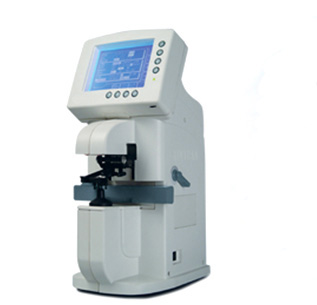

Máy thử kính tự động TW-1080I

06/01/2011 21:01

Wenzhou Dongwu-TQ

specifications︰Full-Function:
It can measure single vision lenses, bifocal(trifocal) lenses, progressive power lenses(PPL), and contact lenses(CL), and the colored lenses(the Sunglasses) that transmittance is above 10%, also can measure the pupil distance, pupil height and lens diameter.
The instrument is accompanied with the UV measuring instrument and the thermal printer. The equipment performance is steady and free from interruption by environmental light. This instrument still has the function of Abbe constant chooses.

Specification:
1、Sphere：0 to ±25D (0.01D、0.12D、0.25D steps)
2、Cylinder：0 to ±10D（0.01D、0.12D 、0.25D steps）
3、Axis：0°to180°（1°step） Accuracy：±1°
4、ADD：0 to10D（0.01D、0.12D、0.25D steps）
5、Prism：0 to10△（0.01△、0.12△、0.25△ steps）
6、PD Measuring：80mm
7、Lens Diameter：Max. Approx. 120mm
8、UV：Out in UV
9、High Refraction ratio Lens Compensation：ABBE value 20-60
10、Measurable：10% and over；transmissivity (20% and over at ±15D to ±25D)
11、Contact lenses：0±25D，BC 6.00 to 9.00
12、Display：Full graphic 320*240LCD with back light(Black/White)
13、Printer：Built-in thermosensitive printer, paper size 38mm
14、Power source：100-120V~/200-240V~changeable 50 or 60Hz
(Main supply voltage fluctuation not to exceed ±10% of the nominal voltage)
15、Power consumption：40W
16、Weight：7Kg

JD-2000 Auto Lensmeter

specifications︰JD-2000 Auto Lensmeter

Specifications
Measurement Range: Sphere -25~+25D, 0.01/0.12/0.25D steps
Cylinder -9.99~+9.99D, 0.01/0.12/0.25D steps
Axis, 0~180°, 1°steps
Addition 0~9.99D, 0.01/0.12/0.25D steps
Prism? 0~0.99Δ, 0.01/0.12/0.25Δsteps
Pupil Distance: 40mm~86mm, 0.5mm steps
Display: LCD monitou (5.7inches)
Print: Thermal Printer
Power Supply: AC 220~240V, 50Hz, 40VA
Dimension: 220(W) X 320(D) X 430(H)
Weight: Approx. 7kg

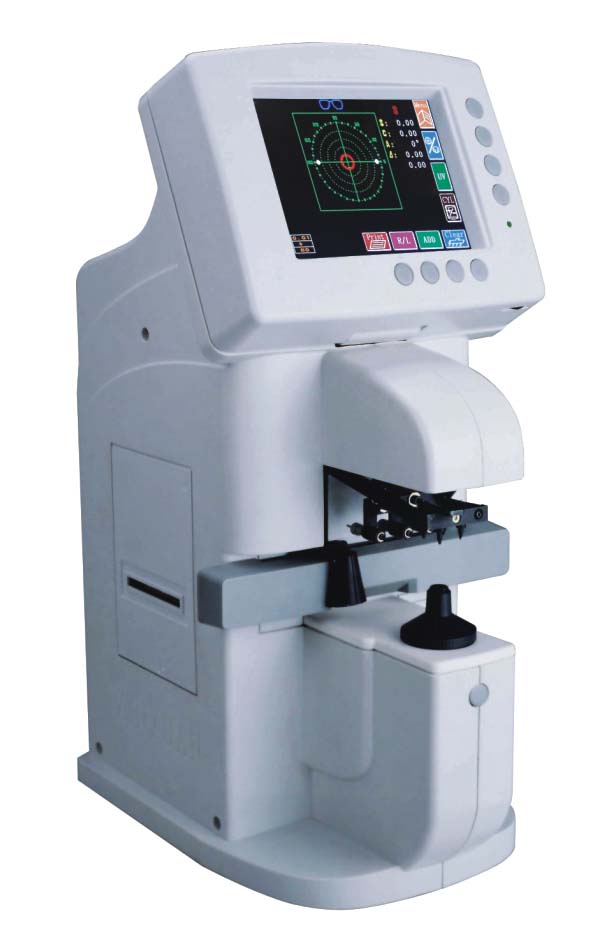

TW-1090 Colored Auto Lensmeter

specifications︰

Features:
Color LCD screen
Quick measurement and accurate data
Auto memory and auto screen save
PD measurement and data auto save
Measurement of various lenses, such as single lens
Multifocal lens, progressive lens, and contact lenses
Conecting for speratate UV tester

SPECIFICATIONS
Pupil Distance……………………….40~86mm, 0.5mm steps
Display………………………………5.7” LCD/6.4” TFT
Print…………………………………Thermal Printer
Power Supply……………………….100~240V 50/60Hz
Dimensions………………………….200(W)×290（D）×450（H）mm
Weight……………………………….approx.7kg

TW-1008 Lensmeter

Product Description Features:
This device is applicable to all-level measurement testing departments, spectacles manufacturers, spectacles retail stores, hospital s department of ophthalmology and optical elements factories for conducting measurement of spherical lens diopter of spectacles or lens, diopter of cylindrical lens, astigmatism axis of cylindrical lens, diopter of bifocal lens, prism degree, prism basal angle and diopter of cornea contact lens.

Specifications:
1、Range of diopter measurement: 0～±25D
2、Space of readings: 0.01D, 0.06D, 0.12D, 0.25D
3、Astigmatism axis of cylindrical lens: 0～180° Space of readings: 1°
4、Prism degree: Model A 0～5△ Space of readings: 0.5△;
Model * B 0～20△
Space of readings: 0～5△：0.5 △；5～20△：1△
5、Prism basal angle: 0～180°Space of readings: 1°, 180°～360°Space of readings: 5°
6、Size of measured lens: Φ16～Φ100mm
7、Lamp of illumination: 12 V / 20W, halogen lamp
8、Voltage: 110V or 220V / 50 Hz
9、Power: 35W
10、Overall dimensions: 295mm(L)×205mm (W)× 455mm(H)
11、Weight: 10 kg
12、Temperature: 5～45 ℃ (in operation) －10～60 ℃ (in storage / during transport)
13、Humidity: 30～75% (in operation) 10～85% (in storage / during transport )
