Tủ bảo quản máu

Tủ trữ máu,BPR-160,Hanshin,Korea

31/07/2011 20:22

Tủ trữ máu,BPR-160,Hanshin,Korea




1 2

*Click image to enlarge the image.

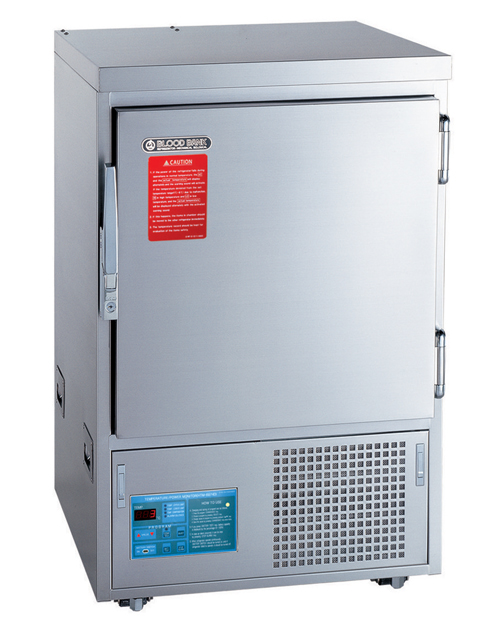

BPR-160




2℃~6℃, 160 liters, Small size Blood Refrigerator

1. Refrigerator for long-term preservation of Blood.
This refrigerator forms an ideal condition, which enable long-term, effective storage of blood. A refrigerator for such purpose requires uniform distribution of the temperature and precise temperature control to prevent the stored materials from deteriorating or being frozen. Therefore this refrigerator is one of the fundamental equipment in blood center, medical institutions and research institutions. This blood refrigerator is manufactured in accordance with the recommended standard temperature requirements established by the American Association of Blood Bank(AABB) and designed to maintain the chamber temperature of 2℃ to 6℃. The automatic off-cycle defrost system and the condensate evaporator are of standard type.



2. Temperature / Power Monitor
The Temperature/Power Monitor displays the actual temperature of refrigerating chamber in real time during operating, if the actual temperature deviates from the set operating temperature range or the electric power has been failed, it shows the actual temperature at that time and high (HI) or low (LO), power failure (AC) mark alternately on the digital LED display accompanying an audible warning.



3. Temperature Recorder (Optional)
The exterior type temperature recorder draws the inner temperature in graphs on the recording diagram for 7 days and the temperature records must be kept for reference.





Model BPR-160
Exterior W612 x D675 x H950 ㎜,
Material: Stainless steel plate
Interior
(Chamber)		 W528 x D565 x H542 ㎜, Vol:  160 ℓ,
Material;  Stainless steel plate
Door Material:  Stainless steel plate
Insulation Non-CFC Polyurethane foam or foam panel,   thickness:  40 ㎜
Drawers W462 x D371 x H97mm   Q;ty:  1ea,
W462 x D491 x H97mm   Q ty:  1ea,
Material;  Stainless steel plate
Compressing Unit 1/5 HP hermetically sealed compressor x 1,
Finned tube coil type condenser with blower
Cooling Unit Finned tube coil type evaporator with blower,
Automatic off-cycle defrost system
Refrigerant R-134a,   Charge;  200 g
Operating Temperature 2.0℃ ~ 6.0℃
Power Source AC 230V, 50/60㎐
Power Consumption 400 W
Temp./Power Monitor Model:  HTM-6974D
Temperature Recorder (optional) External type, Recoding range;  -10℃~+40℃,   7 days revolution,
Ø125㎜ diagram,   1.5V(LR6) battery driven,   Fiber tip pen
Emergency Call System (optional) SOS Call System
Net Weight 87 ㎏
Environment Conditions ㆍAltitudes up to 2,000 meters.
ㆍTemperature range of +15℃ to +30℃.
ㆍRelative humidity of 60~70% RH.
ㆍMain supply voltage fluctuation of ±10% of nominal.
ㆍInstallation Category (Overvoltage Category) Ⅱ,   Pollution Degree  2.
