 | | | YZ-20P5 Ophthalmology Operation Microscope
Feature:
1.Magnification adjustable to best suit for different operation;
2.The coaxial illumination to offer the best image of either anterior chamber or posterior chamber;
3.Foot control for automatic focus, and the maximum focusing range is 30mm;
4.Build-in spare bulb makes the bulb change more quickly;
5.The microscope is portable and the height can be flexible adjusted. The total weight is only 33kg;
Specifications:
Focus of objective lens………………….F200(175, 250, 300, 350, 400)mm
Magnification of Eyepiece……………………………………12.5X/18B
Visual Angle of Eyepiece……………………………………..45°, 90°
(f200)Magnificatio(f200)………………………………..5.3X, 8X, 12X
(f200)Diameter of visual field(f200)……………………Ø38, Ø25, Ø17(mm)
Illumination…………………………………………6°+0°coaxial illumination
Light Source………………………………………12V/100W Halogen Lamp
Illumination Control………………………..continuously adjustable
Lux on objective plane………………………………….30,000Lx
Range and Speed of Focusing………………………….30mm, 2mm/s
Ophthalmology operation microscope
Objective Focus:200mm;
Oblique binocular scope;
60+00 coaxial illumination ensuring the best red spectrum reflection;
Optional table/hanging fixation;
Hand/Foot control;
Standardized column, standardized arm;
XYZ control system; | |
| |
YZ-20P5 ENT Operation Microscope
Feature:
Focus of objective lens………………….F200(175, 250, 300, 350, 400)mm
Magnification of Eyepiece……………………………………12.5X/18B
Visual Angle of Eyepiece……………………………………..45°, 90°
(f200)Magnificatio(f200)………………………………..5.3X, 8X, 12X
(f200)Diameter of visual field(f200)……………………Ø38, Ø25, Ø17(mm)
Illumination…………………………………………6°+0°coaxial illumination
Light Source………………………………………12V/100W Halogen Lamp
Illumination Control………………………..continuously adjustable
Lux on objective plane………………………………….30,000Lx
Range and Speed of Focusing………………………….30mm, 2mm/s
ENT operation microscope
Objective Focus:250mm
Straight binocular scope
Optional table/hanging fixation
Hand/Foot control
Lengthened column, lengthened arm
XYZ control system
| |
| |
YZ-20P5 Dentistry Operation Microscope
Specifications:
Focus of objective lens………………….F200(175, 250, 300, 350, 400)mm
Magnification of Eyepiece……………………………………12.5X/18B
Visual Angle of Eyepiece……………………………………..45°, 90°
(f200)Magnificatio(f200)………………………………..5.3X, 8X, 12X
(f200)Diameter of visual field(f200)……………………Ø38, Ø25, Ø17(mm)
Illumination…………………………………………6°+0°coaxial illumination
Light Source………………………………………12V/100W Halogen Lamp
Illumination Control………………………..continuously adjustable
Lux on objective plane………………………………….30,000Lx
Range and Speed of Focusing………………………….30mm, 2mm/s
Dentistry YZ20P5 operation microscope
Objective Focus:250mm
Oblique binocular scope
Hand/Foot control
Standardized column, standardized arm
XYZ control system | |
| |

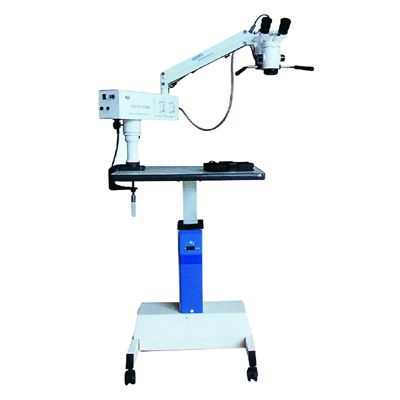

YZ-20P5 Table Type Operation Microscope
Specifications:
Focus of objective lens………………….F200(175, 250, 300, 350, 400)mm
Magnification of Eyepiece……………………………………12.5X/18B
Visual Angle of Eyepiece……………………………………..45°, 90°
(f200)Magnificatio(f200)………………………………..5.3X, 8X, 12X
(f200)Diameter of visual field(f200)……………………Ø38, Ø25, Ø17(mm)
Illumination…………………………………………6°+0°coaxial illumination
Light Source………………………………………12V/100W Halogen Lamp
Illumination Control………………………..continuously adjustable
Lux on objective plane………………………………….30,000Lx
Range and Speed of Focusing………………………….30mm, 2mm/s | |
| |

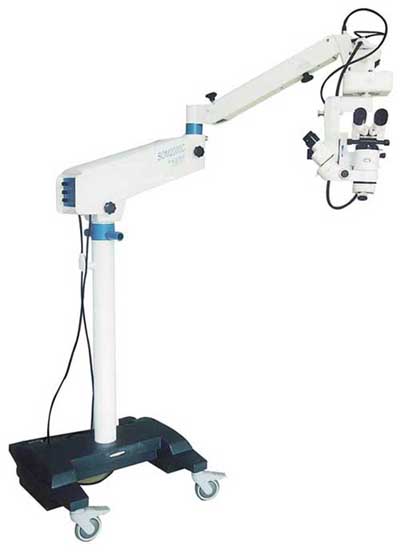

SOM2000D Operation Microscope
Features:
1.Modularized and individualized design;
2.4.5x-25x zoom magnification;
3.Suitable for all kinds of ophthalmic operations;
4.Digital multi-channel electronic control system;
5.Main scope with zoom magnification and assistant microscope with three step magnification;
Specifications:
1. Magnification of Eyepiece:12.5X/18B;
2.Visual Angle of Eyepiece:60° ~90°;
3.Work Distance: 170mm;
4.Magnification: 4.5X~25X;
5.Diameter of Visual Field:ф38mm-ф90mm;
6.Illumination: 6degree+0degree coaxial illumination, 26degree oblique illumination;
7.Light source: 12V/100W halogen lamp;
8.Illumination control: continuously digital adjustable;
9.Lux on objective plane: ≤100,000LX;
10.Focusing range and speed: 40mm, speed continuously adjustable;
11.X-Y range and speed: 50mm×50mm, speed continuously adjustable;
Optional accessories include:
1.Assistant scope;
2.Beam plitter;
3.Teaching tube;
| |
| |
YZ-T4 Operation Microscope
Specification:
Focus of Objective Lens: f200,250,300(mm)
Magnification of Eyepiece: 12.5X/18B
Magnification(f200): 4X,6X,10X,16X,25X, main microscope
6X,10X16X, assistant microscope
Diameter of Visual Field(f200): Ø 58, Ø38, Ø23, Ø14, Ø9(mm)
Working Distance: 190,240,290(mm)
Adjustment Range of Pupil distance: 50-70(mm)
Light source: 12V/100W halogen lamp
Illumination: 6°+0°coaxial illumination, 25°oblique illumination
Lux on objective plane: ≤80000LX2W2W
| |
| |
YZ-20P Operation Microscope( Multi-section)
specifications
·Characteristics
·The whole microscope is smart.
·Three-step magnifications.
·Spring balance system in the arm ensures the microscope move freely.
·All of the lens are multi-coated, mildewproof and anti-reflection
·For optional objectives and other parts applicable to ENT, SURGERY and , gynaecology.
·Specification
Eyepiece Magnification:12.5×/18B
Adjustable Dioptor:±5D
Adjustable range for Pupil Distance:50mm～70mm
Illumination Source:12V/100W，Halogen Lamp: Illumination Type 6°Coaxial Illumination
Coaxial Illumination: ≥10000lx
Reaching Range of Arm:860mm
Adjustable Vertical Range:850mm～1100mm
Voltage: AC220V±10%/ 50Hz±1Hz、AC110V±10%/60Hz±1Hz
Power:120VA
Fuse:AC250V T1.25A 、AC125V T2.5A
Electrical Safety Standard:Conform to Standard IEC 601-1.Class1Type B
Whole Packing Volume 0.283m3
Carton Number:2
Total Weight:35kg
| |
